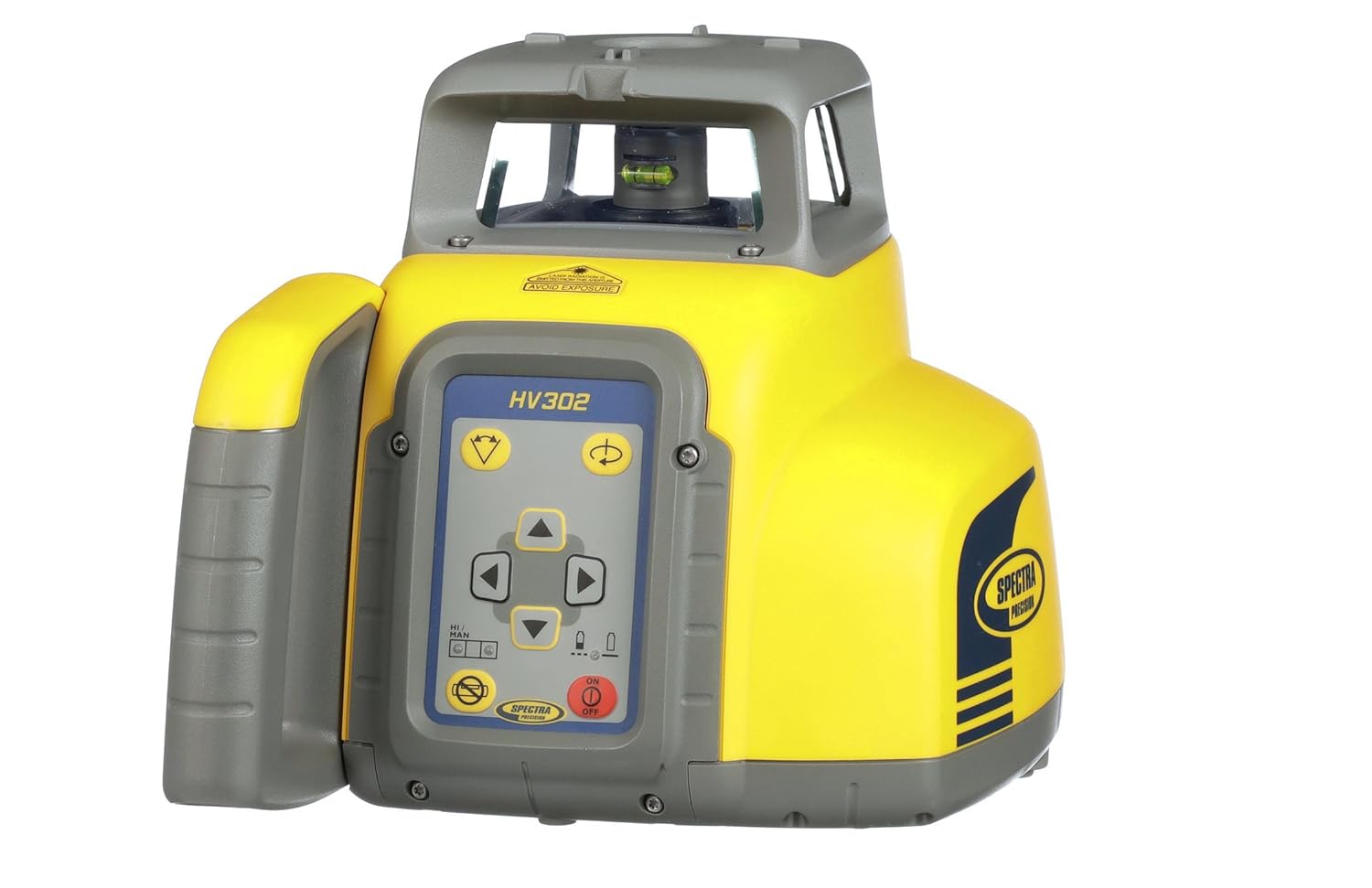

Spectra Precision HV302 Multipurpose Construction Laser for Interior and Exterior

MPN#: HV302
Click to enlarge
Spectra Percision

Description

The Spectra Precision HV302 is capable of handling a wide variety of horizontal, vertical, and plumb applications in both interior and exterior projects. Its high-visibility beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors. Various configurations ensure you have the right tool for the job
  • Automatic horizontal and vertical self-leveling
  • Split beam – enables plumb point transfer and 90-degree layout
  • High-visibility beam – easily visible even in brightly lit conditions
  • Long range RC402N Radio remote control
  • Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
More Product DetailsWhat's Included

Select Package

Clear
Compare
Add to wishlist
Add to quote
Overview

Whether your job is indoors or outdoors, the automatic self-leveling Spectra Precision HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged HV302 laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tipovers up to 1.5 meters (5 feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Various HV302 packages are offered that are appropriate for interior applications, exterior applications or both. Receiver choices include the HL760 for advanced applications. The HL760 offers Grade Match, which establishes a plane between unknown points and horizontal and vertical PlaneLok, which eliminates errors caused by drift, improper calibration or environmental conditions.
User Benefits
Complete leveling crew in a case – carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
Easy to transport, easy to carry, easy to store
Energy-efficient design offers long battery life
Highly durable construction enables the HV302 to survive a drop up to 1 m (3 feet) onto concrete
Radio remote control offers access to all laser functions throughout the jobsite.

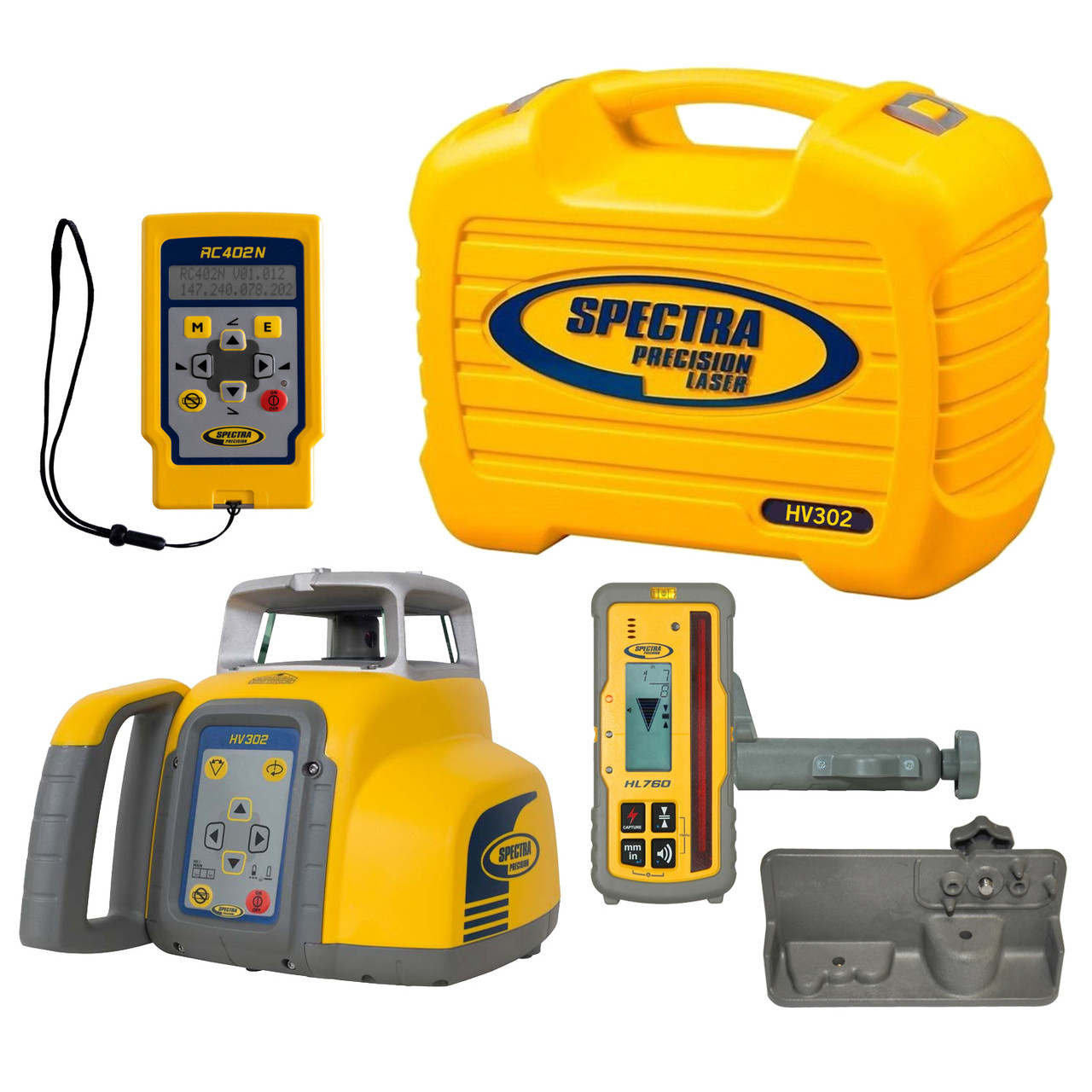

In The Box
  • HV302 Horizontal/Vertical Laser
  • HL760 Receiver
  • C70 rod clamp
  • RC402N Remote
  • Alkaline batteries
  • Carrying case
Specification
  • Automatic horizontal and vertical self-leveling
  • Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft),10 arc seconds
  • Working range of 800 m (2,600 ft) diameter
  • Self-leveling Range ± 5° (±9%)
  • High-visibility beam – easily visible even in brightly lit conditions
  • Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
  • Long range RC402N Radio remote control ​
  • Split beam – enables plumb point transfer and 90-degree layout
  • ​Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok​+
  • Radio Range With HL760 up to 100 m (330 ft)
  • Rotation: 0, 10, 80, 200, 600 rpm
  • Pre-selected Scan Sizes: 5°, 15°, 45°, 90°, 180° and 0
  • Laser Type- red diode laser 600-680 nm
  • Laser Class 3A/3R, max. 5 mW
  • Leveling Indicators - LED flashes
  • Power Source: 10.000 mAh NiMH battery pack
  • Battery Life: 45 hours NiMH; 60 hours alkaline
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Tripod Attachments: 5/8 x 11 horizontally and vertically
  • Dust and Waterproof - IP66
  • Weight 3.1 kg (6.8 lbs)
  • Low Voltage Indication-LED battery indicator
  • Low Voltage Disconnection - unit shuts off
  • 5 Years Warranty
